Single counterbalance valve 853010400-853034700
Single counterbalance valve 853010400--853034700

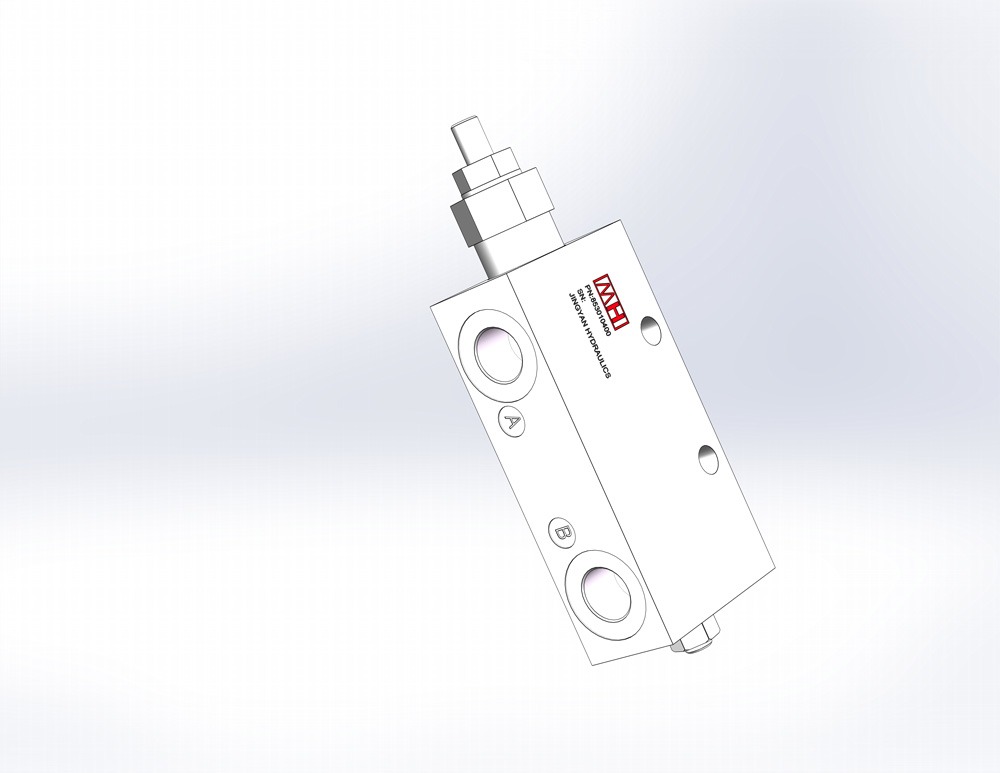

Single Counterbalance Valve
853010400|Single counterbalance valve
>Inline valve
>Steel valve body and Zinc-nickel ant-corrosion coating
>Innovative structural design based on hydrodynamics
>Adjustable pressure setting
| Pilot ratio | 4.3:1 |
|---|---|
| Adjustance pressure range | 100-350bar |
| Standard setting | 350bar |
| Pressure increase | 135bar/r |
| Flow Range | 10-45(L/min) |
| Working Temperature | -20℃-70℃ |
| Medium | Mineral Oil（ISO VG32/46） |
| Medium Purity | ISO 4406 21/18/15…19/17/13 |
| Seal Material | NBR |
| Max. pressure | 500bar |
| Port | G3/8'' |
| weight | 1.4KG |
